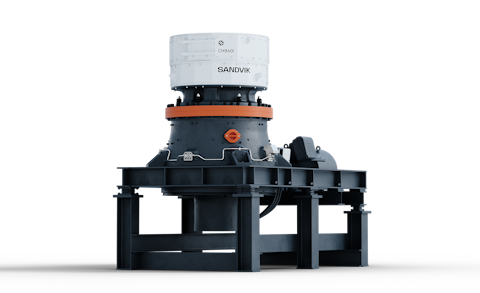

CH860i Cone crusher
Sandvik CH860i is a high capacity technologically advanced, mid-range cone crushers designed for crushing applications in mines or large sized quarries.
The crusher has a hydraulically supported main shaft which is supported at both ends. With a robust design, adjustable eccentric throw, a constant intake opening, they offer production flexibility and depending on crushing application, they perform up to 30% better compared to other crushers in their class.
Sandvik CH860i is dedicated for high capacity secondary crushing thanks to its 500kW motor delivering higher power and more crushing force at maximum throw.
It brings you a revolution in intelligent crushing. Connected via the My Sandvik portal, they offer 24/7 access to data generated by your connected Sandvik crusher fleet. Now you can make decisions based on facts, and clearly see areas where you can improve uptime and productivity. My Sandvik gives you access to manuals and an e-commerce platform for easily and efficiently buying and reordering wear and spare parts. It lets you track and trace parts online to make maintenance planning simpler.
The CH860i comes with the new generation Automation and Connectivity System (ACS) as standard. The system continuously monitors and optimizes crusher performance and controls the complete lubrication system, increasing uptime and reliability. It can automatically adjust crusher settings to compensate for crushing chamber wear– ensuring consistent product size. Hydroset™ and the advanced dump valve automatically provide overload protection to let tramp iron or other uncrushable material pass through.
- Hydroset™ system provides safety and setting-adjustment functions
- Automation & Connectivity System (ACS) automatically adapts the crusher to varying feed conditions ensuring maximum 24/7 performance
- Unibody mainframe ensures optimal strength and less maintenance
- Lifting from above minimizes risks and allows for safer maintenance
- The electric dump valve system protects your crusher against unwanted pressure peaks greatly improving its performance and reliability
|Nominal capacity||250 - 910 mtph (275 - 1,003 stph)|
|Max. feed size||315 mm (12.4 in.)|
|Motor power||500 kW (670hp)|
|Closed side setting (CSS) range||13 - 51 mm (0.5 - 2.0 in.)|
|Eccentric throw range||30 - 70 mm (1.2 - 2.8 in.)|
|Mantles (inner liners)||A, B, FF|
|Concaves (outer liners)||EC, C, MC, M|
|Weight||39,710 kg (87,646 lb)|
|Electric dump valve||Included|
|Tank instrument monitoring system||Included|
|Offline lubrication filtration unit||Included|
Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production selecting the right crushing chamber and eccentric throw. The chambers available are:
- M = Medium
- MC = Medium coarse
- C = Coarse
- EC = Extra coarse
