Stationary HSI impact crushers
CI711 HSI impact crusher
- Max. feed size
- 600 mm (24 in.)
- Capacity
- 200 tph (220 stph)
- Motor power
- 185 kW (250 hp)
- CSS range
- 30.0 - 200.0 mm (1.2 - 7.9 in.)

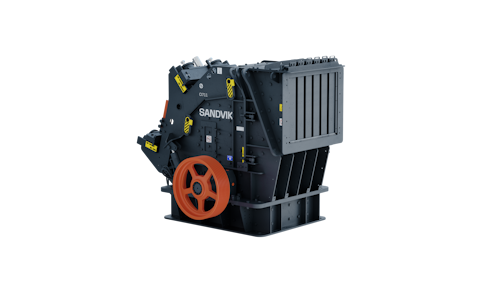

Sandvik CI711 HSI crusher is for primary crushing stage of non-abrasive rocks.
-
High reduction ratios
-
Energy efficient overload protection
-
Crusher blockage elimination
-
Hydraulic curtain adjustment and frame opening
-
Easy and safe maintenance
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Max. feed size
- 600 mm (24 in.)
- Capacity
- 200 tph (220 stph)
- Motor power
- 185 kW (250 hp)
- CSS range
- 30.0 - 200.0 mm (1.2 - 7.9 in.)
- Length
- 2.84 m (112.00 in.)
- Width
- 2.00 m (79.00 in.)
- Height
- 2.79 m (90.00 in.)
- Weight
- 11,005 kg (25,262 lb)
Additional product information
The crusher can be used for a wide range of applications, and is capable of crushing a variety of materials including re-enforced concrete. The working principle of Sandvik CI711 HSI encourages material to break along its natural cleavage planes, and it produces excellent, stress-free, cubical-shape products.
It is of the open rotor type, and the advanced design is equipped with a number of user-friendly features.
Typical applications could be making a Type 1 aggregate 0 – 40 mm (0 – 1 15/16 in.), or Railway Ballast 40 – 70 mm (1 15/16 – 2 ¾ in.), or recycling / crushing of re-enforced concrete and asphalt. With Sandvik CI711 HSI there is low capital outlay, low maintenance, fewer screens and conveyors, enabling a quicker return on investment.
-
