Wheeled impact crushers
UV320E VSI impact crusher
- Equipment
- Sandvik CV217 VSI
- Max. feed size
- 50 mm (2 in.)
- Capacity
- Up to 200 mtph (220 stph)

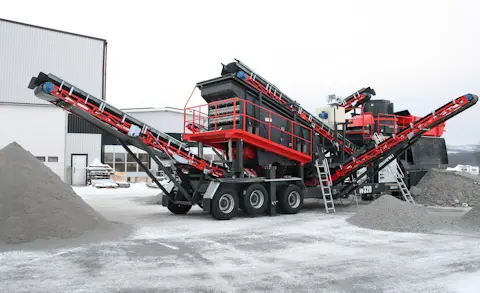

Sandvik UV320E is an integrated vertical shaft impact (VSI) crusher and three-way split screener on a wheeled chassis. Powered by electricity we have designed this unit for the production of premium shaped aggregates for the concrete and asphalt industries at a low cost per tonne.
Features
-
Sandvik VSI technology
for consistent high quality
Sandvik VSI technology
for consistent high quality
for consistent high quality
-
Closed circuit and interlocked process unit
Closed circuit and interlocked process unit
-
Highly efficient on board screen
for product classification
Highly efficient on board screen
for product classification
for product classification
-
Quick to set-up and easy to maintain
resulting in higher uptime and increased productivity
Quick to set-up and easy to maintain
resulting in higher uptime and increased productivity
resulting in higher uptime and increased productivity
-
Easy access for service and maintenance
Easy access for service and maintenance
Product data
Downloads
- Equipment
- Sandvik CV217 VSI
- No. of products
- 3 + Natural Fines
- Max. feed size
- 50 mm (2 in.)
- Capacity
- Up to 200 mtph (220 stph)
- Transport length
- 18.6 m (58.1 ft)
- Equipment
- Sandvik CV217 VSI
- No. of products
- 3 + Natural Fines
- Max. feed size
- 50 mm (2 in.)
- Capacity
- Up to 200 mtph (220 stph)
- Transport length
- 18.6 m (58.1 ft)
- Transport width
- 3.0 m (9.8 ft)
- Transport height
- 4.5 m (14.8 ft)
- Weight
- 46,300 kg (101,800 lb*)
Please note all weights and dimensions are for standard units only.
Former Name: RC107 Wheeled unit.
Additional Product Information
-
UV320E
Sandvik UV320E combines our state of the art Sandvik CV217 crusher and our three-way split screening technology for maximum mobility and flexibility of operation. Sandvik VSI technology, renowned for high capacity and cubical shape at a consistent quality, this unit is highly efficient and produces the highest quality materials.
Sandvik's extensive experience and testing has led to a machine that is highly productive, easy to set up and operate. In order to maximize uptime, the machine has been designed with easy access for servicing and maintenance as a priority.
There are two variants available to optimize quality and capacity in different applications.
Also available within this wheeled range are Sandvik UH320E and UF320E models.
-
Additional advantages
- Designed for maximum efficiency, high quality end product and low operating cost
- Security+ extended warranty & service package for higher uptime and peace of mind.
