| Model | Grizzly Length mm (ft) | Deck m2 | Max Feed Size mm (ft) | Capacity tph |
|---|---|---|---|---|
| SW1052H SW1053H |
2 x 600 (2 x 2) | 0.9 | 600 (2.0) | 400 |
| SW1252H SW1253H |
2 x 600 (2 x 2) | 0.9 | 700 (2.3) | 450 |
Stationary feeders
SW Grizzly feeders
SW Grizzly feeders are specially developed for mobile and portable plants and small to medium size stationary plants.
-

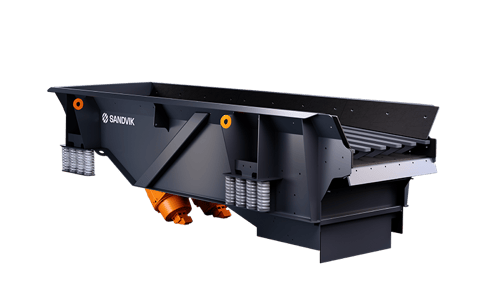

SW Grizzly feeder
SW feeders are suitable for small-to medium-sized stationary quarry applications, however their compact and effective high capacity grizzly design, and optional second deck for fines removal, make them suitable for a wide range of applications.
The two-section grizzly reduces the bar length, which allows sufficient taper of the bars. In addition, the integral grizzly sections are replaceable to ensure structural rigidity, long wear life and consequently reduced operating and maintenance costs.
The dual unbalanced electrical motor drive allows for a simple stepless feed rate adjustment, both on-line and off-line by use of a frequency converter.This system provides a flexible and reliable operation with high availability.

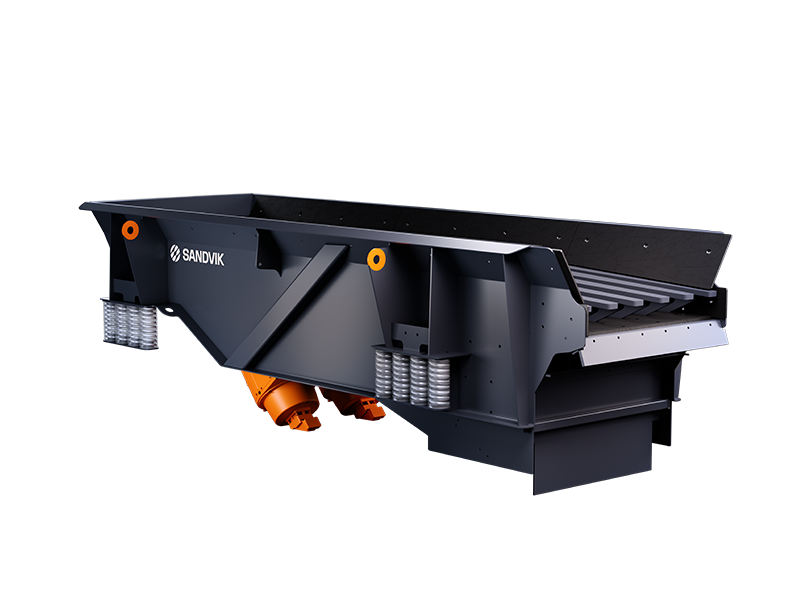

SW Grizzly feeder
SW feeders are suitable for small-to medium-sized stationary quarry applications, however their compact and effective high capacity grizzly design, and optional second deck for fines removal, make them suitable for a wide range of applications.
The two-section grizzly reduces the bar length, which allows sufficient taper of the bars. In addition, the integral grizzly sections are replaceable to ensure structural rigidity, long wear life and consequently reduced operating and maintenance costs.
The dual unbalanced electrical motor drive allows for a simple stepless feed rate adjustment, both on-line and off-line by use of a frequency converter.This system provides a flexible and reliable operation with high availability.
SW feeders are suitable for small-to medium-sized stationary quarry applications, however their compact and effective high capacity grizzly design, and optional second deck for fines removal, make them suitable for a wide range of applications.
The two-section grizzly reduces the bar length, which allows sufficient taper of the bars. In addition, the integral grizzly sections are replaceable to ensure structural rigidity, long wear life and consequently reduced operating and maintenance costs.
The dual unbalanced electrical motor drive allows for a simple stepless feed rate adjustment, both on-line and off-line by use of a frequency converter.This system provides a flexible and reliable operation with high availability.
-
Advantages
- Robust design enables to accept the material impacts from dump trucks or wheel loaders
- Unbalanced vibration motors provides a flexible and reliable operation with high availability
- Feeder models with natural fines removal decks available as well as plain pan feeders without the grizzlies
Advantages
- Robust design enables to accept the material impacts from dump trucks or wheel loaders
- Unbalanced vibration motors provides a flexible and reliable operation with high availability
- Feeder models with natural fines removal decks available as well as plain pan feeders without the grizzlies
- Robust design enables to accept the material impacts from dump trucks or wheel loaders
- Unbalanced vibration motors provides a flexible and reliable operation with high availability
- Feeder models with natural fines removal decks available as well as plain pan feeders without the grizzlies
-
Sandvik SW grizzly feeders
Sandvik SW grizzly feeders
Model Grizzly Length mm (ft) Deck m2 Max Feed Size mm (ft) Capacity tph SW1052H
SW1053H2 x 600 (2 x 2) 0.9 600 (2.0) 400 SW1252H
SW1253H2 x 600 (2 x 2) 0.9 700 (2.3) 450 Model Grizzly Length mm (ft) Deck m2 Max Feed Size mm (ft) Capacity tph SW1052H
SW1053H2 x 600 (2 x 2) 0.9 600 (2.0) 400 SW1252H
SW1253H2 x 600 (2 x 2) 0.9 700 (2.3) 450
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
-
