Stationary feeders
SH Reciprocating plate feeders
SH reciprocating plate feeders are hydraulically operated machines ideal for primary applications with large volumes, high drop heights, or where large dump trucks are used.
-

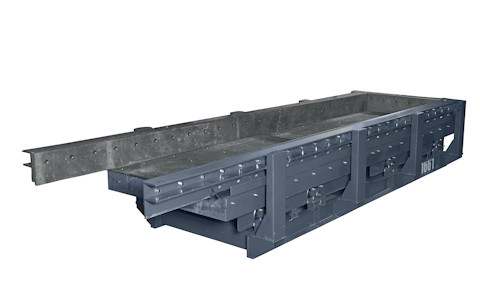

SH Reciprocating plate feeder
The SH reciprocating plate feeder is designed especially for heavy-duty feeding applications for the mining industry but also for mineral processes as well as quarries. This product family has a robust reciprocating plate powered by a hydraulic cylinder, which causes no vibration.
Their maximum capacity range is 300-1,250 m³/h, depending on the size of the feeder and feed hopper design.

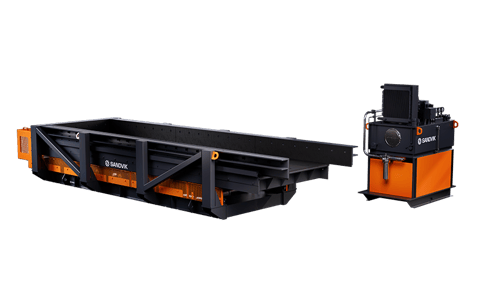

The SV feeder includes base frame, moving plate, side skirts with sealing system, hydraulic cylinder and hydraulic power unit (HPU). The HPU is installed nearby the feeder as standard but optionally by request can be placed at a relatively far distance from the feeder,if necessary.
Feeders for primary applications are base mounted and installed horizontally as standard. The dump/feed hopper shall be designed with inclined side walls to achieve the maximum output capacity. The hopper is usually designed and supplied by others. For truck loading applications (commonly used in underground mines), special feeders with integrated hopper including ahydraulically openable gate at discharge end, are available.
SH reciprocating plate feeders are easily implemented in automatic processes. The HPU includes connection terminals for controlcables, which enables capacity adjustments by plant’s existing PLC/SCADA system.
SH Reciprocating plate feeder
The SH reciprocating plate feeder is designed especially for heavy-duty feeding applications for the mining industry but also for mineral processes as well as quarries. This product family has a robust reciprocating plate powered by a hydraulic cylinder, which causes no vibration.
Their maximum capacity range is 300-1,250 m³/h, depending on the size of the feeder and feed hopper design.
The SV feeder includes base frame, moving plate, side skirts with sealing system, hydraulic cylinder and hydraulic power unit (HPU). The HPU is installed nearby the feeder as standard but optionally by request can be placed at a relatively far distance from the feeder,if necessary.
Feeders for primary applications are base mounted and installed horizontally as standard. The dump/feed hopper shall be designed with inclined side walls to achieve the maximum output capacity. The hopper is usually designed and supplied by others. For truck loading applications (commonly used in underground mines), special feeders with integrated hopper including ahydraulically openable gate at discharge end, are available.
SH reciprocating plate feeders are easily implemented in automatic processes. The HPU includes connection terminals for controlcables, which enables capacity adjustments by plant’s existing PLC/SCADA system.
The SH reciprocating plate feeder is designed especially for heavy-duty feeding applications for the mining industry but also for mineral processes as well as quarries. This product family has a robust reciprocating plate powered by a hydraulic cylinder, which causes no vibration.
Their maximum capacity range is 300-1,250 m³/h, depending on the size of the feeder and feed hopper design.
The SV feeder includes base frame, moving plate, side skirts with sealing system, hydraulic cylinder and hydraulic power unit (HPU). The HPU is installed nearby the feeder as standard but optionally by request can be placed at a relatively far distance from the feeder,if necessary.
Feeders for primary applications are base mounted and installed horizontally as standard. The dump/feed hopper shall be designed with inclined side walls to achieve the maximum output capacity. The hopper is usually designed and supplied by others. For truck loading applications (commonly used in underground mines), special feeders with integrated hopper including ahydraulically openable gate at discharge end, are available.
SH reciprocating plate feeders are easily implemented in automatic processes. The HPU includes connection terminals for controlcables, which enables capacity adjustments by plant’s existing PLC/SCADA system.
-
Reliable and offer a long lifetime
SH feeders can handle high head loads and large lump sizes because of their heavy-duty construction and self-protecting feature. They are rugged, reliable and have a long lifespan. The way they operate allows for dumping big lumps directly onto feeder pans, increasing productivity and efficiency.
They can comfortably handle heavy and moist materials, making them available for a wide range of applications.
Reliable and offer a long lifetime
SH feeders can handle high head loads and large lump sizes because of their heavy-duty construction and self-protecting feature. They are rugged, reliable and have a long lifespan. The way they operate allows for dumping big lumps directly onto feeder pans, increasing productivity and efficiency.
They can comfortably handle heavy and moist materials, making them available for a wide range of applications.
SH feeders can handle high head loads and large lump sizes because of their heavy-duty construction and self-protecting feature. They are rugged, reliable and have a long lifespan. The way they operate allows for dumping big lumps directly onto feeder pans, increasing productivity and efficiency.
They can comfortably handle heavy and moist materials, making them available for a wide range of applications.
-
Advantages
- Easily adjustable feed rate offers tailored performance
- Starts and stops as often as needed, resulting in more uptime
- Low operating speed results in lower power consumption and lower maintenance costs
- Powerful hydraulic system can be easily connected to existing or new control system
Advantages
- Easily adjustable feed rate offers tailored performance
- Starts and stops as often as needed, resulting in more uptime
- Low operating speed results in lower power consumption and lower maintenance costs
- Powerful hydraulic system can be easily connected to existing or new control system
- Easily adjustable feed rate offers tailored performance
- Starts and stops as often as needed, resulting in more uptime
- Low operating speed results in lower power consumption and lower maintenance costs
- Powerful hydraulic system can be easily connected to existing or new control system
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
-
