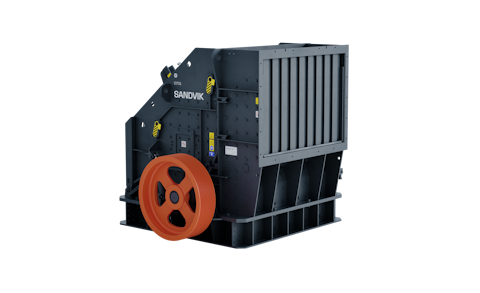

CI731 HSI impact crusher

Sandvik CI700 impact crusher

Sandvik CI731 HSI crusher is for primary crushing stage of non-abrasive rocks. It can be used for a wide range of applications, and is capable of crushing a variety of materials including re-enforced concrete.

Need to know more?

Email us Request a quote

The working principle of Sandvik CI731 HSI encourages material to break along its natural cleavage planes, and it produces excellent, stress-free, cubical-shape products.

It is of the open rotor type, and the advanced design is equipped with a number of user-friendly features.

Typical applications could be making a Type 1 aggregate 0 – 40 mm (0 – 1 15/16 in.), or Railway Ballast 40 – 70 mm (1 15/16 – 2 ¾ in.), or recycling / crushing of re-enforced concrete and asphalt. With Sandvik CI731 HSI there is low capital outlay, low maintenance, fewer screens and conveyors, enabling a quicker return on investment.

Advantages

  • High reduction ratios
  • Energy efficient overload protection
  • Crusher blockage elimination
  • Hydraulic curtain adjustment and frame opening
  • Easy and safe maintenance
Technical data
Feed size 1,000 mm (39 in)
Capacity 400 - 700 tph
Length 3.21 m (126 in)
Width 3.22 m (127 in)
Height 2.83 m (111 in)
Weight 27,750 kg (61,178 lbs)

RELIABILITY AND PROTECTION PACKAGE

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
