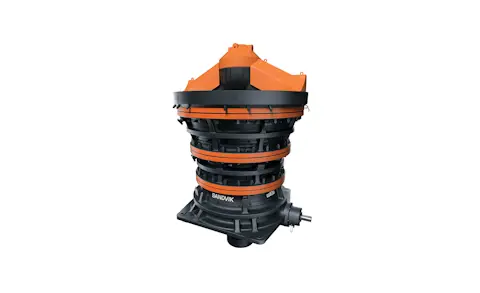

Stationary gyratory crushers

CG820i

Capacity (by hour)
1,500 - 4,000 mtph (1,650 - 4,400 stph)
Feed opening
1,372.0 mm (54.0 in.)
Motor power
525 kw (700 hp)

Sandvik CG820i crusher is built to be robust, reliable and efficient. Connected to SAM by Sandvik, they revolutionize availability and optimize uptime by giving you actionable insights into how the crusher is performing.

Features

Product data

Capacity (by hour)
1,500 - 4,000 mtph (1,650 - 4,400 stph)
Feed opening
1,372.0 mm (54.0 in.)
Motor power
525 kw (700 hp)
Open side setting (OSS)
125.0 - 215.0 mm (5.0 - 8.5 in.)
Automation (ASRi)
Standard
TIMS
Standard
Horizontal Shaft
500 rpm
Weight
244 tonne (268 ton)

Additional product information

Sandvik CG820i crusher offer excellent reliability and safer & faster maintenance – up to 30% faster than competing crushers. A robustly designed one-piece main shaft and reinforced shells are made for tough use. The one-piece spherical spider bearing offers 5 times longer wear life than competing spider bushing design.

Well-designed crushing chambers built from strong materials make a fulcrum point that ensures a constant eccentric throw, guaranteeing up to 90% of feed opening. Secure, self-tightening concaves prevent liners from coming loose. Metallic contact between the upper mantle area and main shaft absorbs forces to avoid fatigue failures.

The automation system optimizes the performance of the crusher without overloading it, allowing you to get the most out of your crusher. It can also automatically adjust your crusher settings to compensate for crush-ing chamber wear – ensuring consistent product size.

The Tank Instrument Monitoring System (TIMS) provides real-time monitoring of the crusher lubrication system to ensure it functions optimally. Monitoring the Lubrication system, spider bearing grease system and overpressure system, it ensures oils are at the right flow and temperature, and triggers alarms to protect the crusher.
