Wheeled cone units

UH316 Cone unit

Equipment
Sandvik CH430 cone, SA1853 triple deck screen
Max. feed size
185 mm (7 in.)
Capacity
Up to 250 mtph

Sandvik UH316 is a compact secondary and tertiary crusher fully assembled on a single trailer frame. The powerful combination of our efficient Sandvik SA1853 triple deck screen and a highly productive Sandvik Hydrocone crusher make this wheeled crushing unit a versatile performer across a broad range of applications.

Features

Product data

Equipment
Sandvik CH430 cone, SA1853 triple deck screen
Max. feed size
185 mm (7 in.)
Capacity
Up to 250 mtph
Power
160 kW (217 hp)
Transport length
12.3 m (40.4 ft)
Transport width
2.8 m (9.2 ft)
Transport height
5.0 m (16.5 ft)
Weight
35,000 kg (77,161 lb)

Additional product information

  • UH316

    Sandvik UH316 is a reduction solution in the most demanding of applications. The advanced Sandvik Hydrocone crusher is designed to provide exceptional flexibility in both materials and processing, with a choice of a variety of crushing chambers and throws, as well as three different feed options. The thicker side plates and large mechanism provided with the Sandvik SA1853 screen makes Sandvik UH316 ideal for providing primary crushed material to the screen first. When it comes to versatility, this multipurpose wheeled unit has the ability to produce up to four products, to meet the most ambitious requirements. The compact size makes it a perfect fit for mobile applications.

    Operator efficiency and safety are paramount in all Sandvik products and Sandvik UH316 is no exception. User-friendly features such quick set-up times, hydraulically controlled settings, and easy ground access are sure to boost productivity. An array of safety features, from crusher-mounted safety guards to multiple emergency stop buttons, provide added peace of mind. Tough, steel plate construction and easy access for service maintenance make our wheeled crushing units dependable, long-life performers.

    Also available in the wheeled cone range is Sandvik UH311UH312UH412 and US316.

  • Additional advantages

    • Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity

Our wheeled cone units

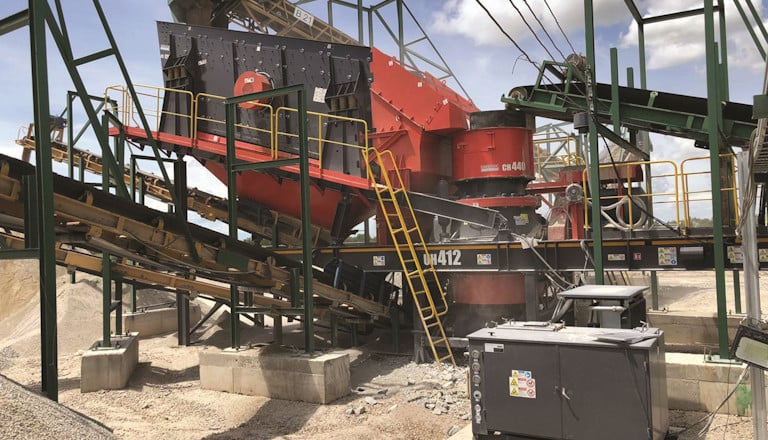

UH412 wheeled cone crusher
Wheeled cone units

UH412 Cone unit

Equipment
Sandvik CH440 cone, SA2164 four deck screen
Max. feed size
215 mm (9 in.)
Capacity
Up to 300 mtph (330 stph)
UH412 Cone unit

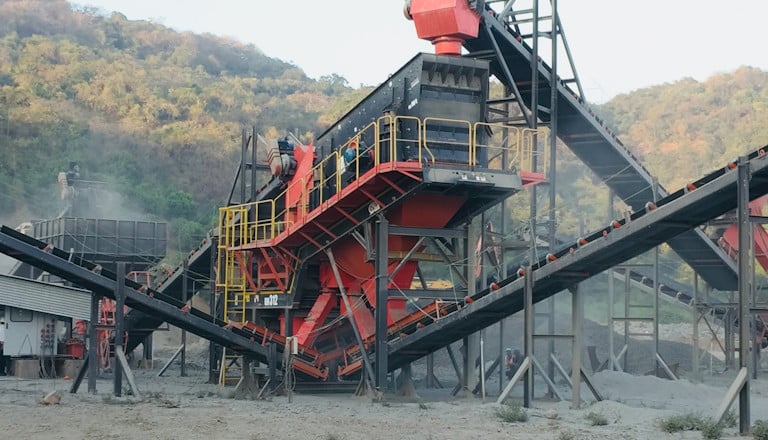

UH312 wheeled cone crusher
Wheeled cone units

UH312 Cone unit

Equipment
Sandvik CH440 cone, SA1854 four deck screen
Max. feed size
215 mm (9 in.)
Capacity
Up to 300 mtph (330 stph)
UH312 Cone unit
UH311 wheeled cone crusher
Wheeled cone units

UH311 Cone unit

Equipment
Sandvik CH430 cone, SA1854 four deck screen
Max. feed size
185 mm (7 in.)
Capacity
Up to 200 mtph (220 stph)
UH311 Cone unit

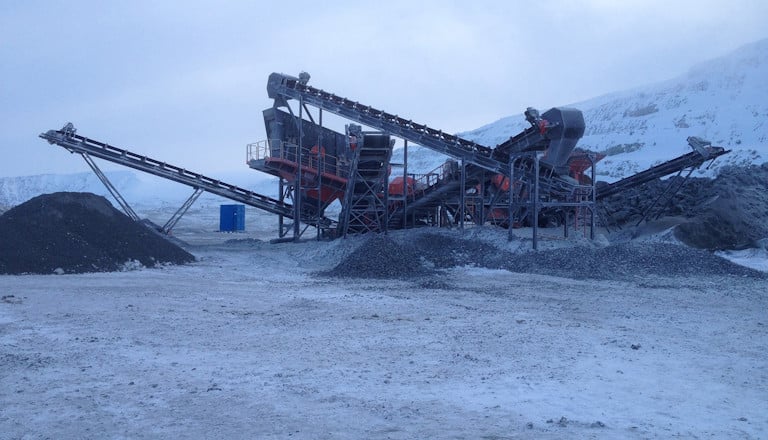

US316 cone crusher
Wheeled cone units

US316 Cone unit

Equipment
Sandvik CS430 cone, SA1853 triple deck screen
Max. feed size
360 mm (14 in.)
Capacity
Up to 325 mtph (358 stph)
US316 Cone unit
