Wheeled impact units
UI310+ HSI impact unit
- Equipment
- Sandvik CI721 HSI, ST1263 feeder
- Max. feed size
- 700 mm (28 in.)
- Capacity
- Up to 450 mtph (496 stph)

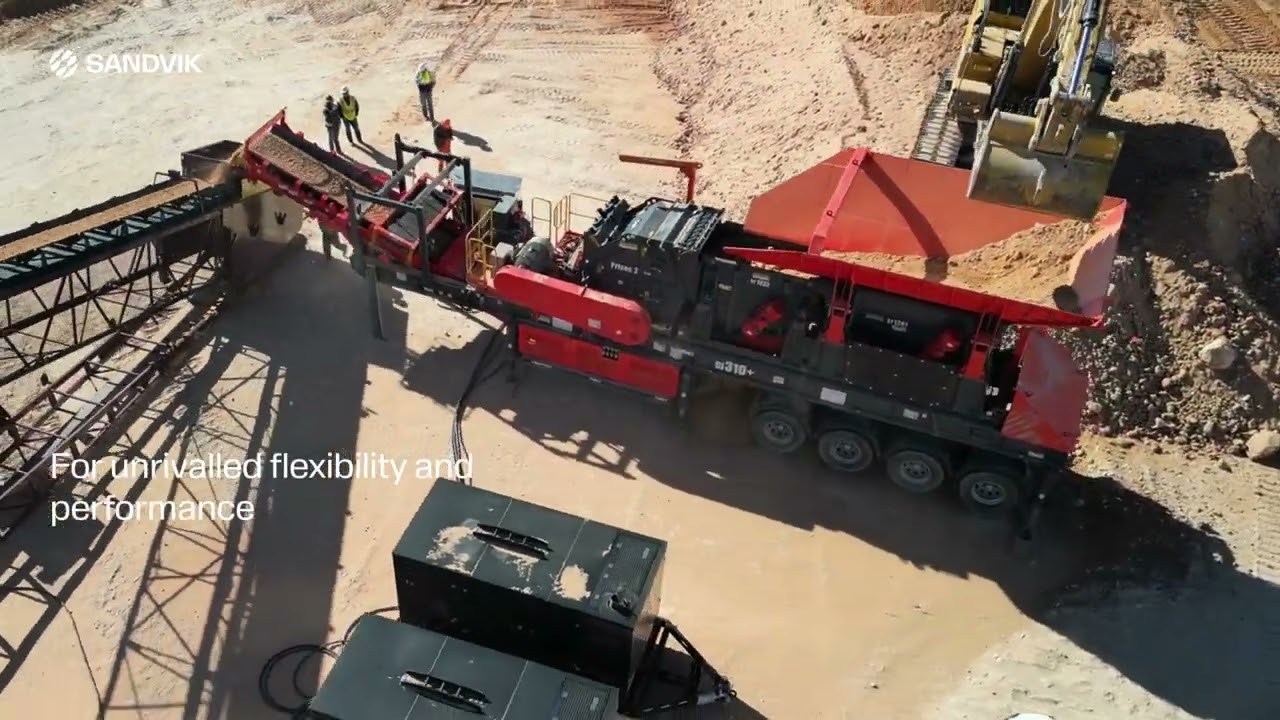

Sandvik UI310+ is a primary crushing unit fully assembled on a single trailer frame. We have designed it to provide maximum versatility with an efficient triple deck vibrating screen and a Sandvik CI721 Prisec impact crusher on board.
Features
-
Market leading impact chamber
for unrivalled flexibility and performance
-
Ideal for primary and secondary crushing
-
Highly efficient and accurate screening capability
-
Quick set-up times
for maximum uptime
-
Compact layout
and excellent stability
Product data
- Equipment
- Sandvik CI721 HSI, ST1263 feeder
- No. of products
- 3
- Max. feed size
- 700 mm (28 in.)
- Capacity
- Up to 450 mtph (496 stph)
- Power
- 286 kW (383 hp )
- Transport length
- 16.3 m (53.3 ft)
- Transport width
- 2.7 m (8.9 ft)
- Transport height
- 4.1 m (13.5 ft)
- Weight
- 38,000 kg (83,776 lb*)
Please note all weights and dimensions are for standard units only.
Please note this unit is not available globally.
*Please refer to Technical data sheet for dimensions with Skid assembly.
Additional Product Information
-
UI310+
Sandvik UI310+ has been designed to combine the ability to configure one base crusher into either primary or a secondary mode, enabled by the patented and highly modularized Sandvik CI721 crusher. We have ensured it is adaptable to your ever-changing requirements, and the equipment ensures greater reduction ratios through the revolutionary chamber design.
Sandvik UI310+ is also an operator-friendly unit with platforms fitted with handrails and access ladders from the ground, safety guards around the crusher and screen, and self-contained electrical switchgear cabinet on board for power distribution. Years of research, development and experience in the field have enabled Sandvik to manufature this versatile, productive and safe machinery.
Also available in the Wheeled impactor range is Sandvik UI310.
-
Additional advantages
- Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
- Security+ extended warranty & service package for higher uptime and peace of mind.
Our Wheeled impact units
UV210 VSI impact unit
- Equipment
- Sandvik CV217 VSI, SA1853 triple deck screen
- Max. feed size
- 700 mm (28 in.)
- Capacity
- Up to 185 mtph (200 stph)

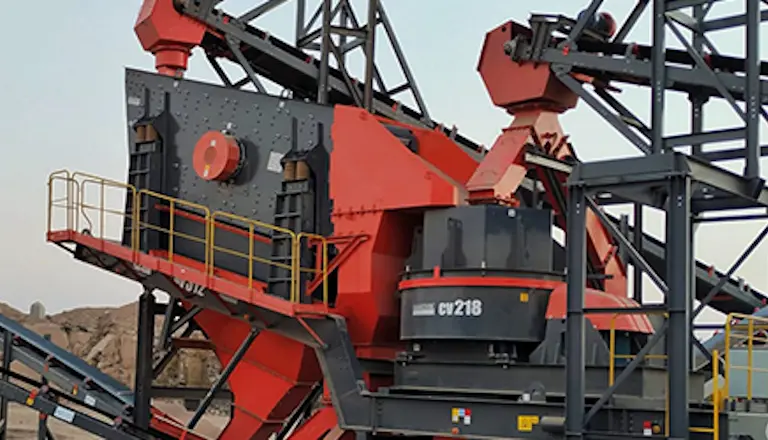

UV312 VSI impact unit
- Equipment
- Sandvik CV218 VSI, SA1854 triple deck screen
- Max. feed size
- 55 mm (2 in.)
- Capacity
- Up to 250 mtph (275 stph)
UI310 HSI impact unit
- Equipment
- Sandvik CI721 HSI, ST1263 feeder
- Max. feed size
- 700 mm (28 in.)
- Capacity
- Up to 450 mtph (496 stph)
UV320E VSI impact unit
- Equipment
- Sandvik CV217 VSI
- Max. feed size
- 50 mm (2 in.)
- Capacity
- Up to 200 mtph (220 stph)
