Sandvik mobile crushers drive rock‑solid results for West Texas Rock Resources

Founded in 2007, the West Texas Rock Resources (WTRR) team - led by owners Cheyenne Smith and Randall Smith - have always prioritized delivering the high-quality materials local businesses need to complete their projects to the best possible standards. By combining this focus on reliability and integrity with good people, they have helped the greater West Texas community on the road with their aggregate supply and civil site construction services.

Local impact

From the McMullen Pit site, the WTRR team is producing a range of aggregate types, including 057 concrete rock, rip rap and 3/4″ to 2″ rock. Depending on the demand for specific materials, their mining equipment has to be able to flex to customer requirements, without dropping in efficiency or throughput.

To get a train that could handle these needs, WTRR turned to Crushing Tigers. An authorized distributor of high-performance aggregate machinery and equipment, they’re also a community-focused company. As well as supplying machines from top global brands to purchase or lease, they support local businesses with parts, servicing and training.

This comprehensive backup and mutual values made them a natural partner for West Texas. As Niall Sorohan, Territory Manager for Crushing Tigers, explains, “Although we supply machinery across eight different states, our headquarters and heart is based in Austin, Texas. Just like the West Texas team, we want to make a positive difference to the local people and customers. So it’s great to be able to support them with the reliable, heavy-duty machinery they need and the equally important aftermarket care.”

Crushing results

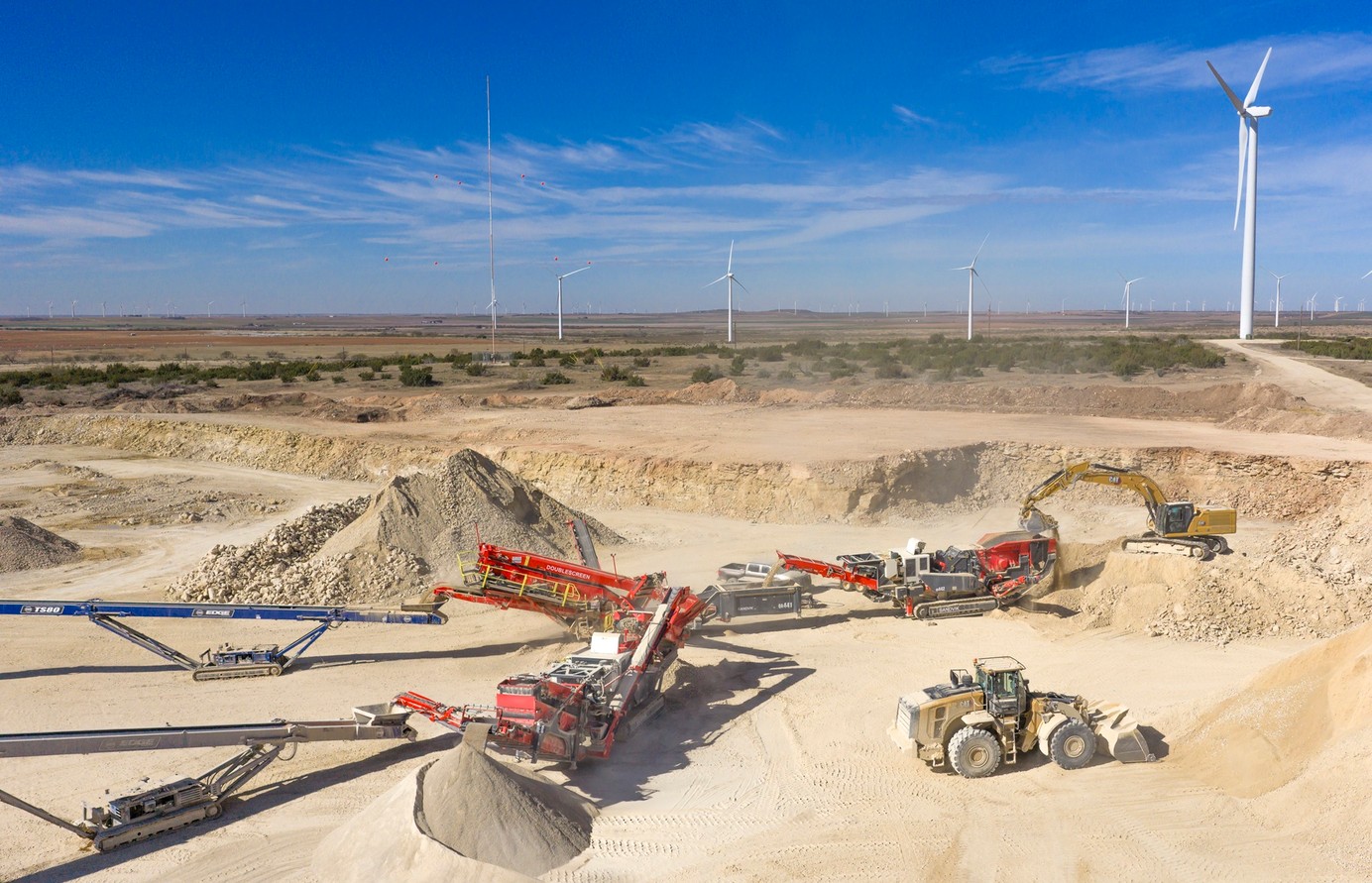

On the McMullen site, the crushing and screening train is entirely made up of Sandvik equipment supplied by Crushing Tigers. Raw material is fed into a primary QI442HSI impact crusher by an excavator. Material is then conveyed into the QA441 two deck Doublescreen for processing, before oversize is fed into the QH332 cone crusher.

All the machines have heavy-duty components and are designed for high throughput. Working in unison, they are equipped with digital technologies that support their operation and monitoring. The PLC control system makes them easy for operators to control, while the fuel-efficient engines keep running costs and emissions low.

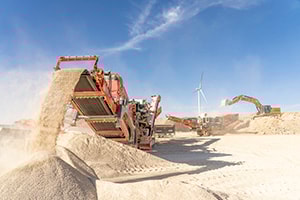

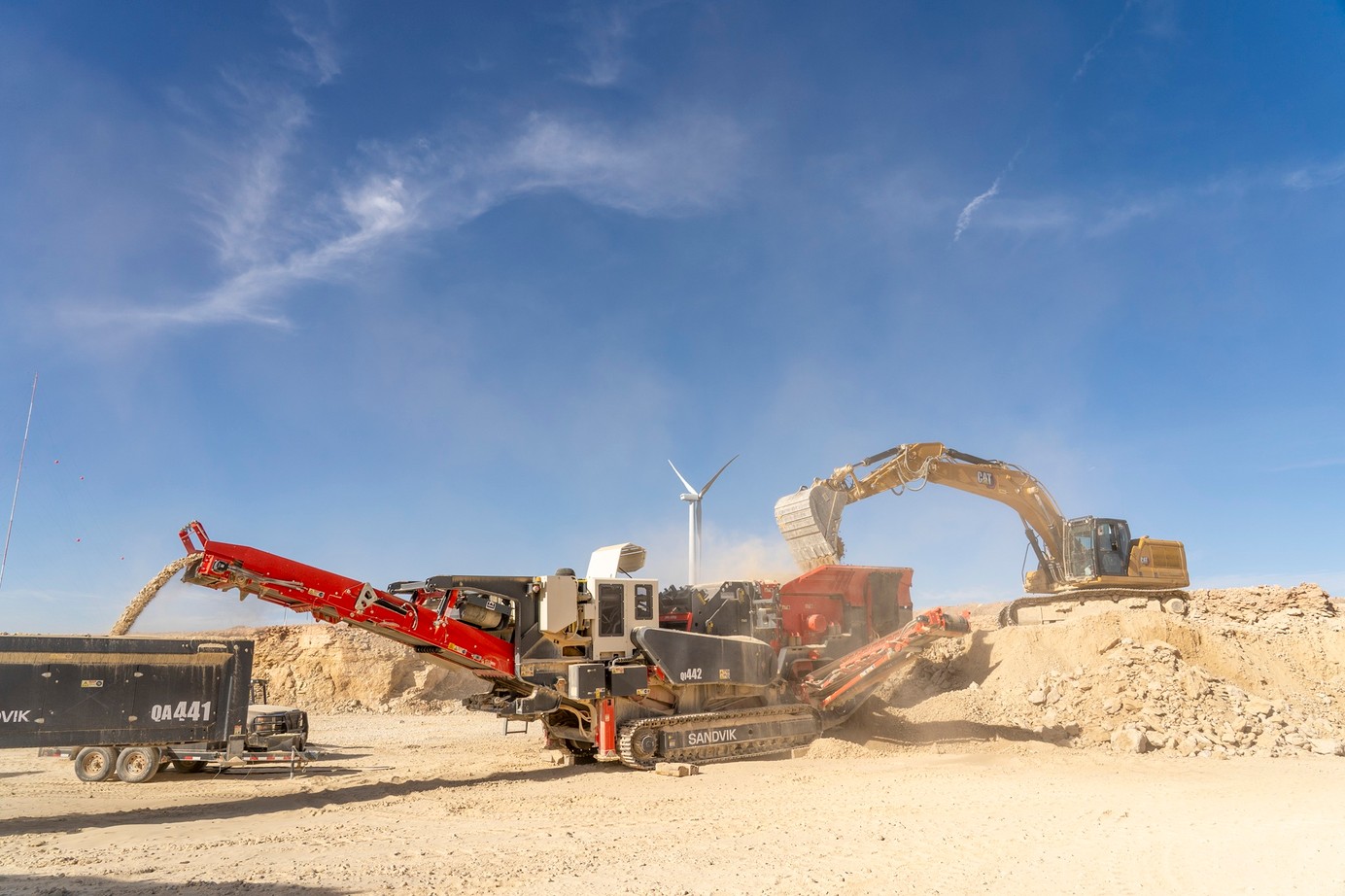

The QI442 HSI is a tracked impact crusher with a feed opening of 1360mm by 800mm, with a maximum feed size of up to 800mm and a capacity of up to 500mtph. The impact chamber is also equipped with Prisec™ technology. Designed to improve safety during maintenance and servicing, it has a new rotor position and locking device, new hammer locking wedges for quicker removal and fitting and a tool that allows for less risky removal and installation.

A patented adjustment and braking system means operators can relieve blockages without stopping operations. While a hydraulically controlled product conveyor helps alleviate rebar obstruction. Components are also designed to resist high levels of wear, meaning they can continue running efficiently even in the harsh Texan environment. An adjustable tip speed and double deck pre-screen also ensure precise product refinement.

The QE442 heavy-duty two deck screen scalper can equally handle high levels of throughput and wear. The screen size is 5.5m by 1.75m / 18’ x 6’ , giving it a capacity of 900mtph (992 stph) through the fines conveyor alone. It also has a high speed and aggressive throw to efficiently process high volumes of material. The heavy duty chassis can also accommodate interchangeable side conveyors in two- or three-way split configurations.

Operations and servicing is straightforward thanks to two-speed radio remote control tracking, feeder control and hydraulically folding maintenance platforms. A feeder load sensor helps prevent blockages and unnecessary downtime, Plus, setup time is reduced by the one-piece hopper and hydraulically folding discharge conveyors.

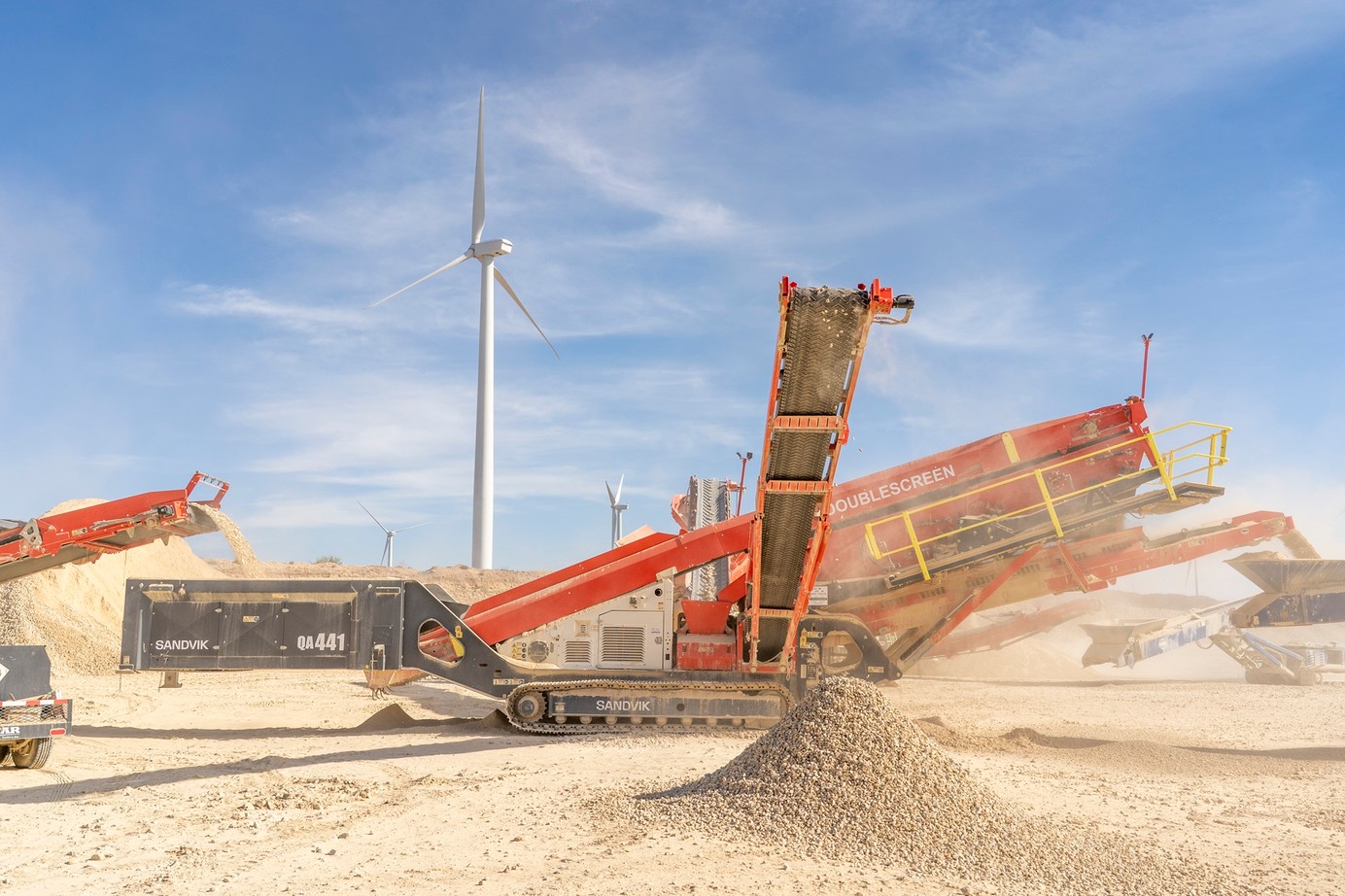

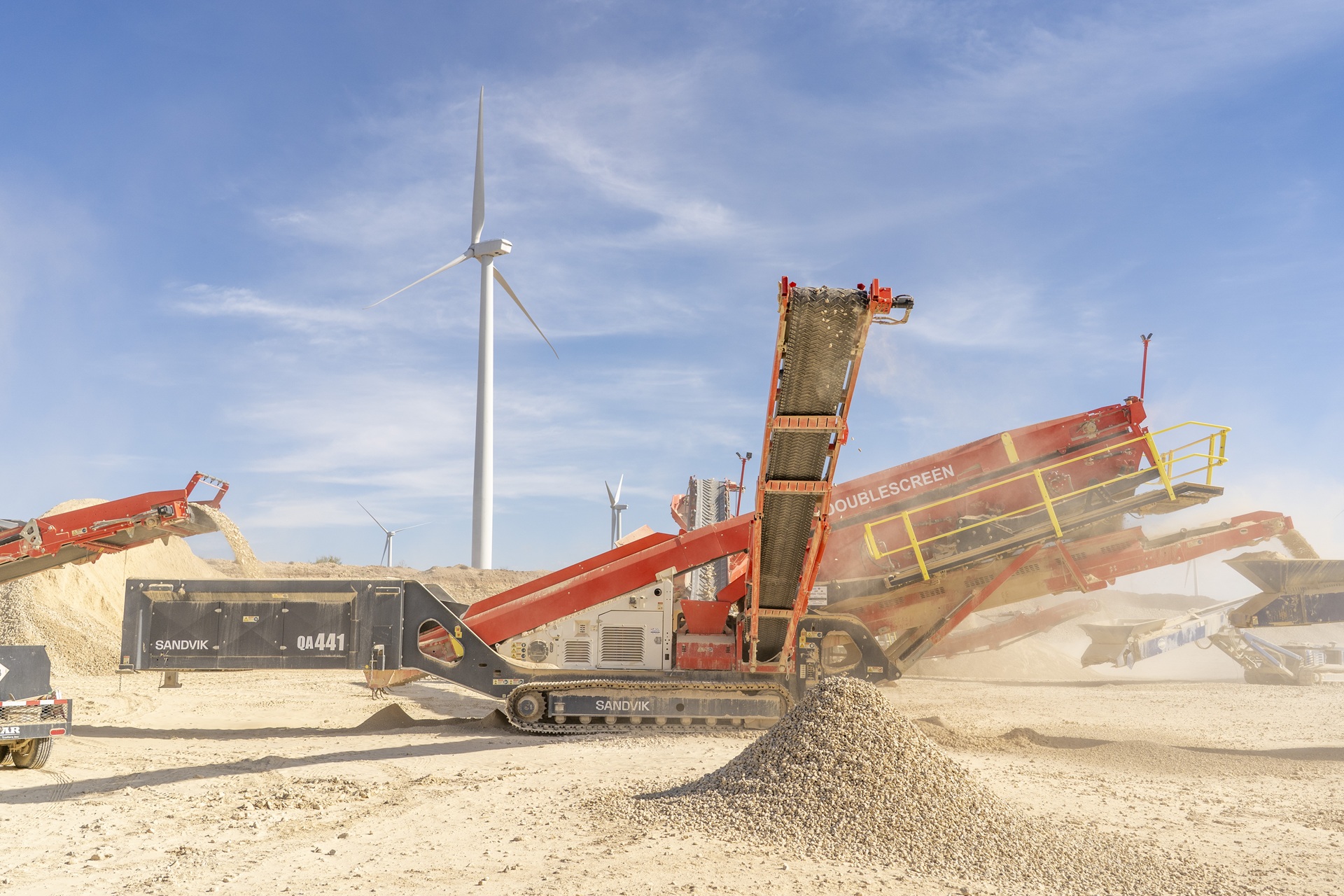

The QA441 mobile Doublescreen is the largest two deck tracked screen of its kind in the Sandvik range. Its world class Doublescreen technology means two high velocity screens can be operated and adjusted independently, with one extracting fines and the other operating as a grader. Alongside a screen size of 6m x 1.5m (20’ x 5’) and a screen box achieving vibrations up to 1200rpm, this enables high throughput levels while allowing for adjustability and accuracy.

Built from premium components, with wear-resistant liners in the hopper and side conveyor feeds, plus a feeder load sensor, the screener can operate efficiently in the harshest environments. Combined with a well-proportioned, fuel-efficient engine, a hybrid drive option and extended hydraulic fluid change intervals, this machine minimizes downtime and maximizes cost-effectiveness.

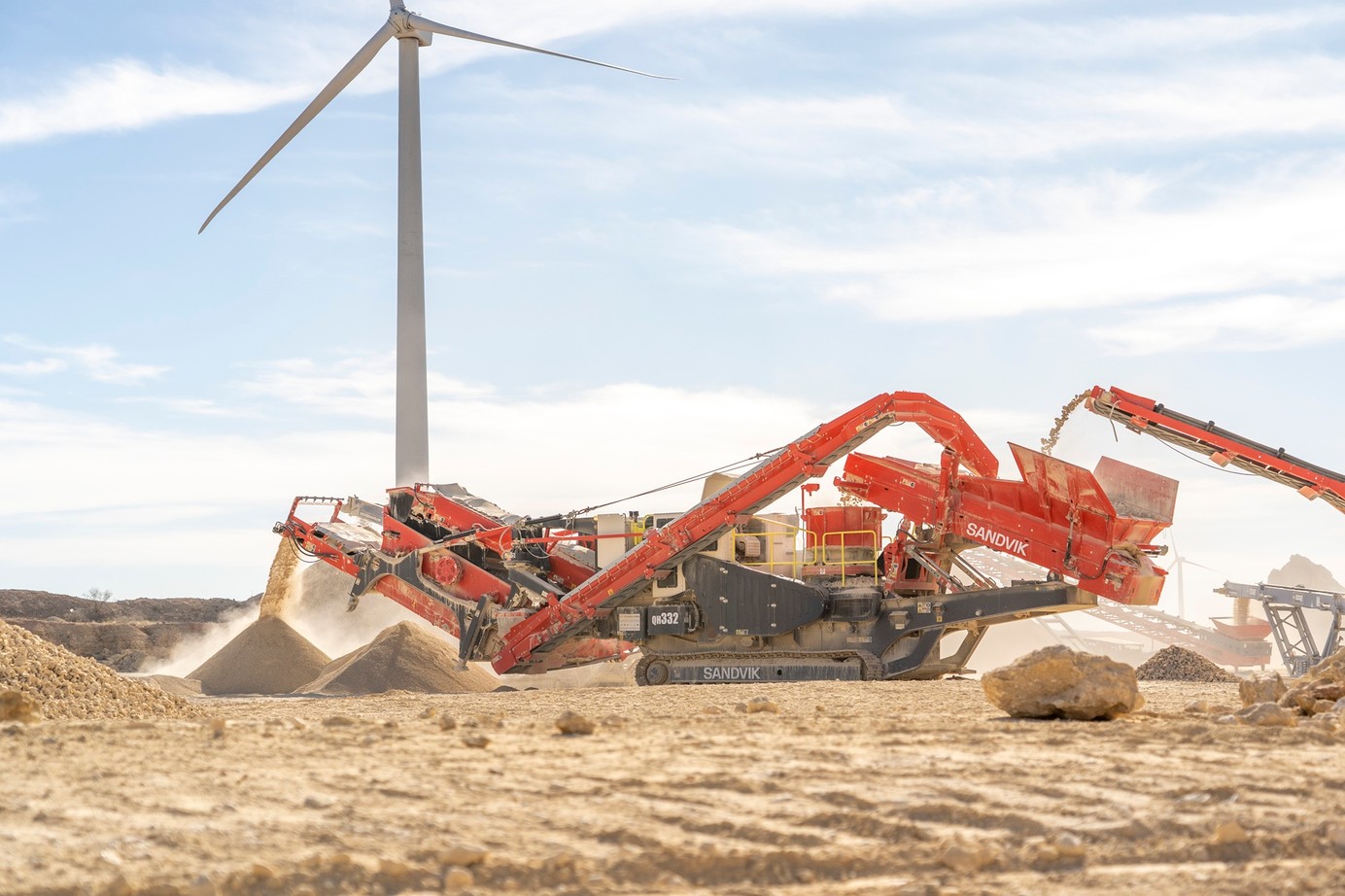

The final machine in the train, the QH332 cone crusher with modular double deck hanging screen, also offers the West Texas team versatility and top-level performance while protecting operators. A unibody mainframe is essential for maintaining strength and stability while processing high volumes. An up-and-over metal detector allows for accurate removals while the steel pipework supports superior heat dissipation.

The hydraulic cone has a Hydroset (CSS) setting and overload protection to ensure minimal downtime. With no crusher backing required, the machine can operate immediately after a liner change, again maintaining good levels of uptime. High-performance power transfer means tighter close side settings can be achieved, while larger throw variations also enable the team to achieve precise crushing performance. With the additional modular HS323 double deck hanging screen, this provides further versatility, with the option to operate in open or closed circuit, and is easy to set-up in less than 30 minutes. All these Sandvik units provide cutting edge health and safety features to protect operators.

Quality support

For the West Texas team, the Sandvik team ticks a lot of boxes. As well as helping them achieve precise sizing on a range of aggregates, the machines are easy to maintain and operate, with features that maximize efficiency. This is backed up with professional, on-hand support from the Crushing Tigers’ team.

James Carney, Manager of McMullen and Clement's quarries for West Texas Rock Resources, explains:

The run time is amazing. We have hardly any downtime. Productivity is up there, too. I would definitely recommend these Sandvik machines.

“Crushing Tigers has been a good partner in our mining operations, their sales group is always on point, I can always call them and they’ll always answer. Their parts department is the same, they get parts to us as quickly as possible. They are also very easy to work with and very affordable.”
