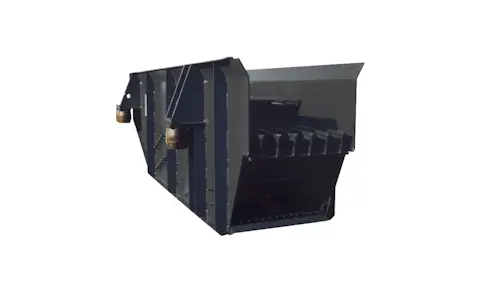

SW Grizzly feeders

Sandvik SW grizzly feeders are specially developed for mobile and portable plants and small to medium size stationary plants. Compact and high capacity with an effective grizzly design and an optional second deck for fines removal, they are suitable for a wide range of applications.
Need to know more?
Downloads
Advantages
- Robust design enables to accept the material impacts from dump trucks or wheel loaders
- Unbalanced vibration motors provides a flexible and reliable operation with high availability
- Feeder models with natural fines removal decks available as well as plain pan feeders without the grizzlies
Model | Grizzly Length mm (ft) | Deck m2 | Max Feed Size mm (ft) | Capacity tph |
---|---|---|---|---|
SW0732 SW0733 |
2 x 750 (2 x 2) | 0.7 | 400 (1.3) | 200 |
SW0842 SW0843 |
2 x 900 (2 x 3) | 1.2 | 500 (1.6) | 250 |
SW1042 SW1043** |
2 x 900 (2 x 3) | 1.2 | 600 (2.0) | 350 |
SW1052H SW1053H |
2 x 600 (2 x 2) | 0.9 | 600 (2.0) | 400 |
SW1252H SW1253H* |
2 x 600 (2 x 2) | 0.9 | 700 (2.3) | 450 |
Feeders are also available on the following mobile units:
*UJ310 Wheeled unit
**UJ300 Wheeled unit, UJ210 Wheeled unit
