ST Feeder and screen combinations

Sandvik ST feeder and screen combinations

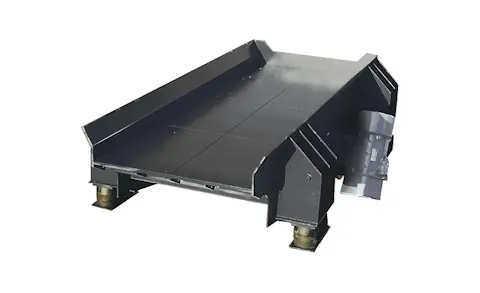

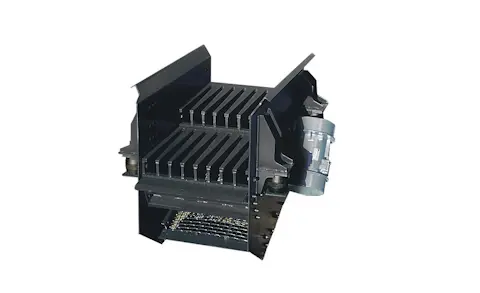

Sandvik ST is a combination of a separate pan feeder and a separate double-deck vibrating screen. ST units are most commonly installed before a jaw or impact crusher on mobiles or at stationary crushing stations.

Need to know more?

Email us Request a quote

It offers better fines removal, which means better crusher performances.

Advantages

  • Separate feeder provides accurate material flow control
  • Separate vibrating screen ensures efficient scalping, fines removal and high availability even with difficult materials
  • This combination can significantly improve the total throughput of a primary station by its ability to keep the crusher fully fed even during varying feed conditions
  • Low dynamic loads and power consumption due to efficient unbalanced vibration motors used
ModelFeeder ScreenWeight kgMax feed sizeMax hopper volume m3
ST0863 ST0841
ST0822		 2,350
2,550 		 500 15
ST1063 ST1041
ST1022		 2,530
2,800 		 600 20
ST1263 ST1241
ST1222		 2,680
3,620		 750 30
ST1363 ST1341
ST1322		 2,860
3,930		 850 30
ST1673* ST1541H
ST1622H		 5,500
6,580		 950 80

*Special extra heavy design
