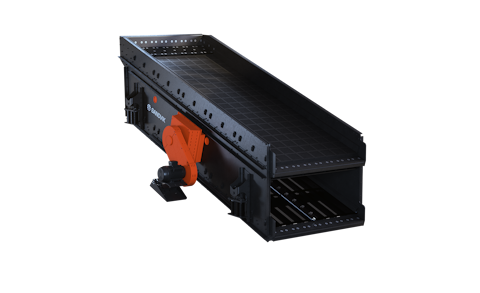

SJ Inclined screens

The SJ screens are designed for heavy-duty, medium and fine screening, primarily in quarry, but also in some mining applications. The SJ screens can be used as splitter screens to divide flows within a plant and are frequently used for final screening of finished fractions. The screens are circular motion inclined screens in two or three deck design.

Need to know more?

Email us Request a quote

The decks can be equipped with any kind of modern long lasting synthetic modular, side tensioned or self-supporting screening media or panel (pin & sleeve), as well as wire mesh or steel plate.

Screening decks are modular, so you can change your screening panels to from side tensioned screening media to modular screening media and back by simply using adapters whenever you want.

ADJUSTABILITY

The screen performance can easily be modified according to present conditions by adjusting the following factors:

  • Screen inclination angle (i.e. adjustable spring seats)
  • Stroke length (i.e. extra counterweights)
  • Rotation speed (i.e. transmission belt pulley)

ADVANTAGES

  • Easily adaptable to varying conditions and materials, suitable for multi-application installations
  • Versatile screening media options for quick transitions to changing conditions or materials
  • Low capex to performance ratio, enabling investment in other critical areas

For more information and data about the screen please download the technical specification.

WN4000 & WN5000 Screening media

A modular screening media of soft rubber with punched or molded apertures, primarily for fine screening in difficult conditions, with a separation between 2-16 mm and a maximum feed size of 50 mm.

WN6000 & WN7000H Screening media

A modular screening media of rubber with punched or molded apertures primarily for fine to medium coarse screening in dry applications with a separation between 10-63 mm and a maximum feed size of 150 mm.

WN8000 Screening media

A modular screening media of polyurethane with molded apertures primarily for fine to medium coarse screening in wet applications with a separation between 1-31.5 mm and a maximum feed size of 100 mm.

RELIABILITY AND PROTECTION PACKAGE

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
