Wheeled jaw units

UJ310 Jaw unit

Equipment
Sandvik CJ411 jaw, SW1253 H feeder
Feed opening
1045 x 840 mm (41 x 33 in.)
Max. feed size
750 mm (30 in.)
Capacity
Up to 325 mtph (358 stph)

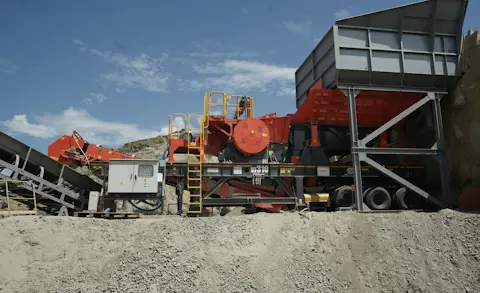

UJ310 jaw crushing unit

Sandvik UJ310 offers a primary crushing solution fully assembled on a single trailer frame and mounted on a triple axle bogie. It features the reliable and highly productive Sandvik CJ411 jaw crusher and comes complete with feeder motors, starters, frequency drive and an electrical control panel to make it user friendly and productive.

Features

Product data

Equipment
Sandvik CJ411 jaw, SW1253 H feeder
Feed opening
1045 x 840 mm (41 x 33 in.)
Max. feed size
750 mm (30 in.)
Capacity
Up to 325 mtph (358 stph)
Power
kW
Transport length
15.1 m (49.7 ft)
Transport width
2.6 m (8.2 ft)
Transport height
4.0 m (13.1 ft)
Weight
52,500 kg (115,700 lb)

This unit is CE-certified.
Please note all weights and dimensions are for standard units only.

Additional product information

  • UJ310

    Sandvik UJ310 allows for a smooth material flow due to the ideal nip angle that is very efficient in reducing product size. The jaw also has a deep crushing chamber operated by single-toggle and the settings can be adjusted for simple and efficient operation.

    In addition, Sandvik UJ310 is compact and benefits from excellent stability even in the toughest conditions. For the operator, it's easy to set up and use thanks to Sandvik implementing features based on years of research, as well as customer feedback.

    We have designed this equipment with your needs in mind to give you high productivity and increased safety.

    Also available in the wheeled range of jaw crushing units are Sandvik UJ210 and UJ300 models.

  • Additional advantages

    • Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
    • Security+  extended warranty & service package for higher uptime and peace of mind.

Case stories

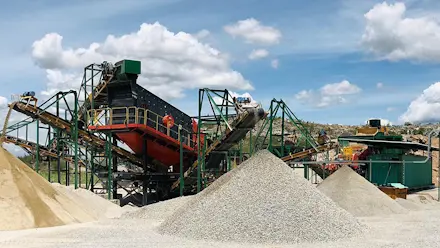

Wheeled Mobile crushers prove an excellent investment in Thailand

Thai mining company Silasomboonsub invested in a Sandvik UJ310 and UH412 wheeled crushing units to process over 500,000 tons of blasted rock at their quarry site.

Our wheeled jaw units

Wheeled jaw units

UJ210 Jaw Unit

Equipment
Sandvik CJ409 jaw, SW1043H feeder
Feed opening
895 x 660 mm (23.6 in.)
Max. feed size
600 mm (24 in.)
Capacity
Up to 235 mtph (359 stph)
UJ210 Jaw Unit
Wheeled jaw units

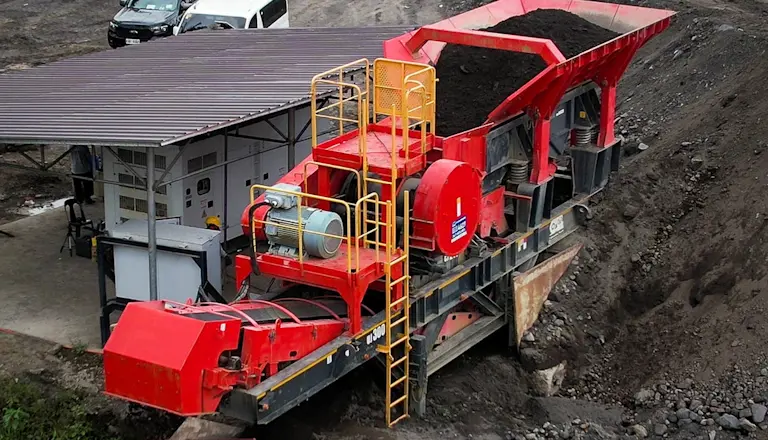

UJ300 Jaw unit

Equipment
Sandvik CJ211 jaw, SW1043H feeder
Feed opening
1100 x 700 mm (43 x 28 in.)
Max. feed size
630 mm (26 in.)
Capacity
Up to 310 mtph (342 stph)
UJ300 Jaw unit
