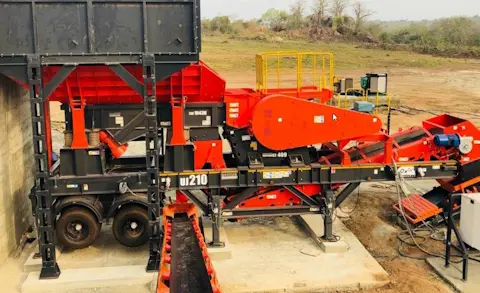

UJ210 Wheeled jaw unit

Sandvik UJ210 offers a primary crushing solution fully assembled on a single trailer frame and mounted on a double axle bogie. We have equipped this unit with the reliable and highly productive Sandvik CJ409 jaw crusher, to ensure outstanding efficiency and productivity. It also comes equipped with features to enhance your productivity including feeder motors, starters and a user-friendly control panel.
Need to know more?
Downloads
With Sandvik UJ210 you will see a smooth material flow due to the ideal nip angle that is very efficient in reducing product size. The jaw also has a deep crushing chamber operated by single-toggle and the settings can be adjusted for simple and efficient operation.
All features on this machine have been designed with your needs in mind to give you high productivity and increased operator safety.

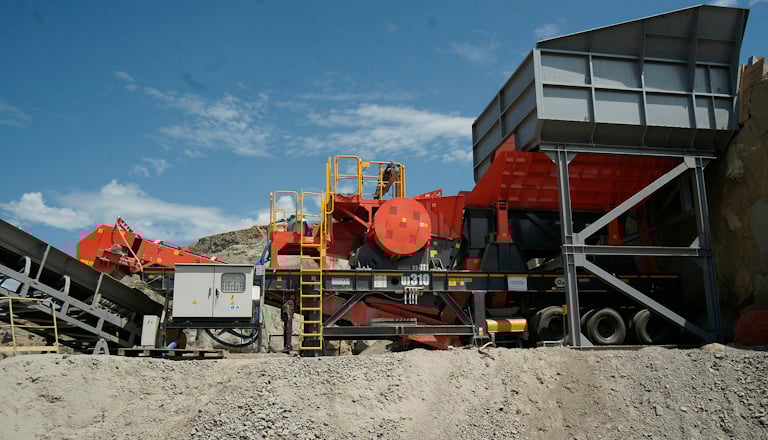

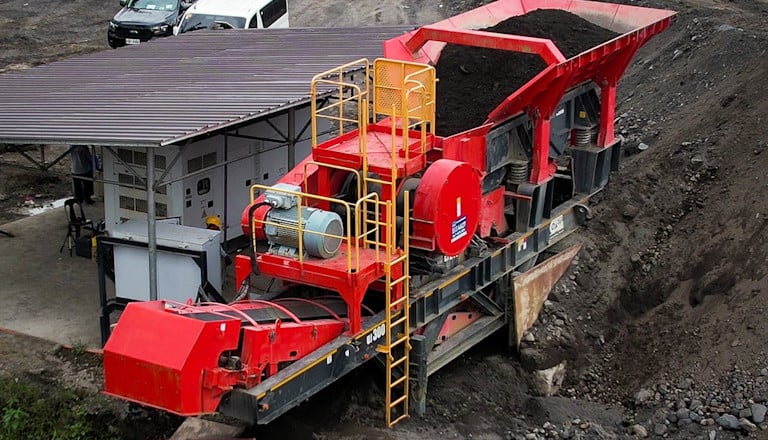

Also available in the wheeled range of jaw crushing units are Sandvik UJ300 and UJ310 models.
Advantages
- Ideal solution for your primary crushing needs
- Grizzly feeder with adjustable openings and by-pass chute for greater flexibility
- Easy setting adjustment for simple and efficient operation
- Soft starting crusher for trouble free operation
- Low cost per tonne due to electric operation
- Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
- Security+ extended warranty & service package for higher uptime and peace of mind.
Technical data | |
---|---|
Equipment | CJ409 jaw crusher, SW1043H feeder |
Feed opening | 895 x 660 mm (35 x 26 in.) |
Maximum feed size | 600 mm (23.6 in.) |
Capacity (up to) | 235 mtph (359 stph) |
Power | 95 kW (129 hp) |
Transport length | 12.6 m (41 ft 3 in.) |
Transport width | 2.55 m (8 ft 4 in.) |
Transport height | 4.10 m (13 ft 4 in.) |
Weight | 36,500 kg (80,500 lb) |
These units are non CE-certified.
Please note all weights and dimensions are for standard units only.
