Wheeled jaw units

UJ300 Jaw unit

Equipment
Sandvik CJ211 jaw, SW1043H feeder
Feed opening
1100 x 700 mm (43 x 28 in.)
Max. feed size
630 mm (26 in.)
Capacity
Up to 310 mtph (342 stph)

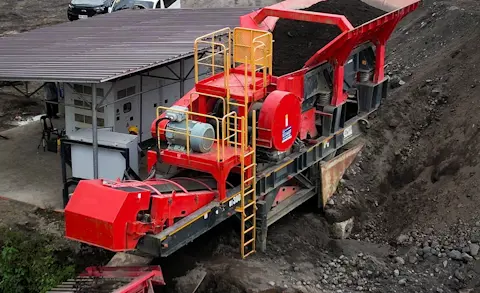

UJ300 wheeled jaw crusher

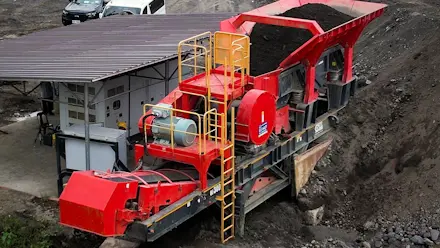

Sandvik UJ300 is a primary crushing unit designed for safe, simple and user-friendly operation. It offers high-end productivity at a low cost-per-tonne, ideal for a wide range of applications.

Features

Product data

Equipment
Sandvik CJ211 jaw, SW1043H feeder
Feed opening
1100 x 700 mm (43 x 28 in.)
Max. feed size
630 mm (26 in.)
Capacity
Up to 310 mtph (342 stph)
Transport length
12.6 m (41.3 ft)
Transport width
2.6 m (8.3 ft)
Transport height
4.1 m (13.5 ft)
Weight
37,000 kg (81,571 lb)

These units are non CE-certified.
Please note all weights and dimensions are for standard units only.

Additional product information

  • UJ300

    Sandvik UJ300 is equipped with the reliable and highly productive Sandvik CJ211 jaw crusher. You will benefit from smooth material flow and high reduction efficiency, as well as hydraulic wedge push button controls and an optimized feed chamber.

    The equipment is designed for primary crushing, and features a grizzly feeder system with a wire cloth screening element beneath, to enable the removal of natural fines.

    Also available in the wheeled range of jaw crushing units are Sandvik UJ210 and UJ310 models.

  • Additional advantages

    • Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
    • Security+  extended warranty & service package for higher uptime and peace of mind.

Case stories

Wheels keep on rolling in for Kazakhmys Corporation in Kazakhstan

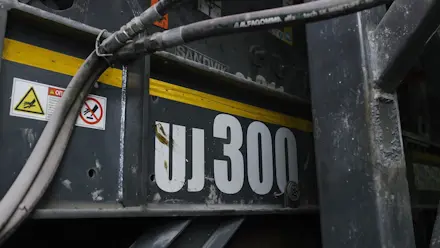

Kazakhmys Corporation LLC in Kazakhstan decided to invest in Sandvik’s wheeled UJ300 crushing unit for their underground copper mining operations. They were so impressed with the productivity and simplicity of operation of the Sandvik mobile jaw crusher, they have since put five more into operation with additional units on order.

Wheeled and tracked duo prove just the job for Makapa Corporation in the Philippines

Makapa Corporation in the Philippines are operating a UJ300 wheeled jaw crushing unit together with a tracked QA335 Doublescreen. Processing river gravel to produce material for their own construction company, they have been delighted with the performance and production capacity of this mobile duo from Sandvik.

Our wheeled jaw units

Wheeled jaw units

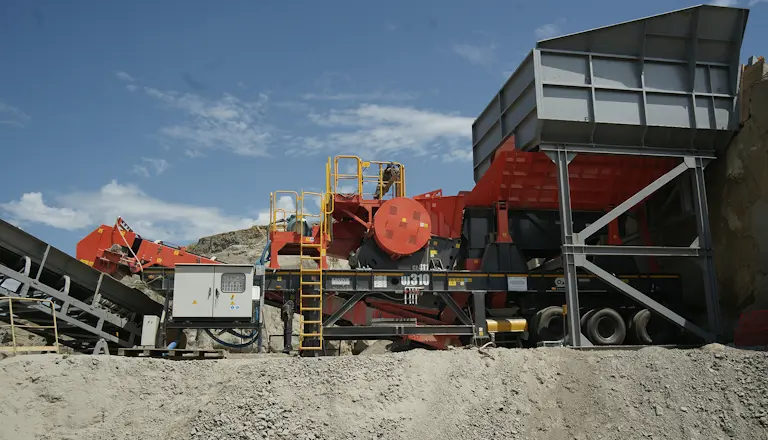

UJ310 Jaw unit

Equipment
Sandvik CJ411 jaw, SW1253 H feeder
Feed opening
1045 x 840 mm (41 x 33 in.)
Max. feed size
750 mm (30 in.)
Capacity
Up to 325 mtph (358 stph)
UJ310 Jaw unit
Wheeled jaw units

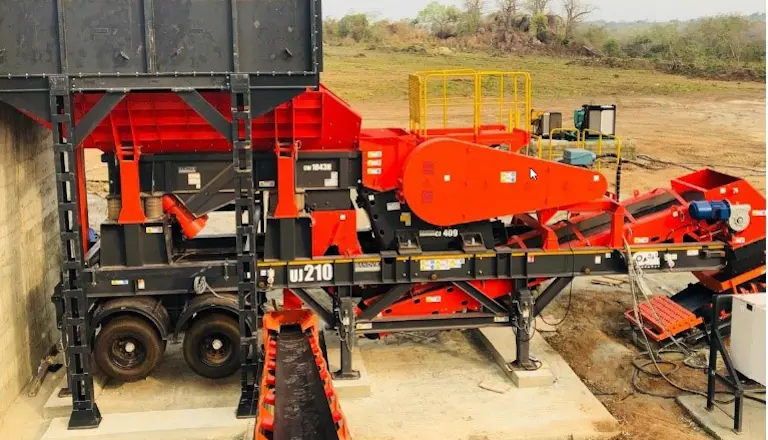

UJ210 Jaw Unit

Equipment
Sandvik CJ409 jaw, SW1043H feeder
Feed opening
895 x 660 mm (23.6 in.)
Max. feed size
600 mm (24 in.)
Capacity
Up to 235 mtph (359 stph)
UJ210 Jaw Unit
