Sandvik further strengthens North American Wheeled Offering with two new units

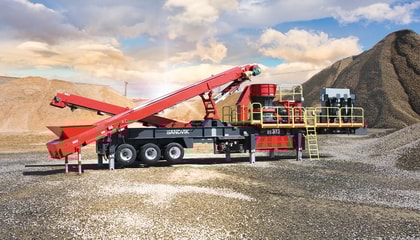

Following the success of the UH373 cone crusher, the new Sandvik US373 now features the highly reliable and powerful Sandvik CS430 cone crusher with a 180 HP drive fully assembled on a triple axle trailer frame.

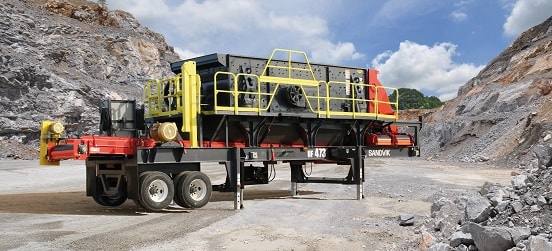

The UF473 is a screening unit with a Triple Shaft Horizontal screen, conveyors and control panel fully assembled on a heavy-duty tandem axle trailer frame.

Both models have been designed with a range of new features while offering high-end productivity processing at a low cost-per-ton. 

More Reliability

Built to Sandvik’s global quality standards, these machines can operate in the most hostile environment. Assembled on a heavy-duty chassis, strength analysis on structural parts and use of quality components ensures a durable product.

More Sustainability

All onboard components on both units are electrically driven, giving reliability, ensuring longer lifetime and supports optimized service and maintenance whilst reducing CO2 emissions. The US373 also features Constant Liner Performance (CLP) for extended life and performance of chamber liners.

More Productivity

The US373 cone crusher features the largest feed opening in its class for enhanced intake ability and reduced bridging while the cone crusher unibody mainframe ensures optimal strength and less maintenance. Sandvik’s ASRi™ technology automatically adapts crusher to feed conditions and enables real-time performance management. With a choice of several chambers, throws and settings for a wide range of applications, the US373 enables you to fine tune your specification and improve capacity.

Sandvik’s UF473 screening unit offers a three 8' x 20' Screen with a high G force and elliptical throw resulting in increased capacity. Fitted with a triple shaft, the screen provides a large screening area to efficiently separate the material. Combined with well-designed conveyors and chute works along with blending gates at 25% increments on all decks, the UF473 is a highly productive unit.

More Safety Features

As safety is our no.1 priority, we have included several features as standard to improve onsite protection. Safety guards, emergency stop buttons and spacious maintenance platforms provide excellent access for service and maintenance. 

Summary of key US373 Cone Crusher features:

• Ideal solution for your secondary crushing needs
• Largest feed opening in its class for increased intake ability and reduced bridging
• Integrated ASRi™ automatically adapts crusher to feed conditions and enables real-time performance management
• Constant Liner Performance (CLP) crushing chambers permits constant feed acceptance capability, increased output, high quality products and increased liner life
• Easy setting adjustment for simple and efficient operation
• Soft starting crusher with UL certified control panel
• Low cost per ton due and low emissions due to electrical operation, minimizing environmental impact
• Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity

Summary of key UF473 Screening Unit features:

• Ideal solution for your screening needs
• A high quality, rugged screen with heavy duty bracing and frame members giving you a reliable and productive unit
• Three deck 8’ x 20’ screen with a high G force and elliptical throw result in increased capacity
• Hydraulic folding walkways for quick set up
• Safety line for fall protection over the screen box during maintenance
• UL certified removable electrical switchgear
• Low cost per ton due to electric operation
• Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
