Medium range breaker booms

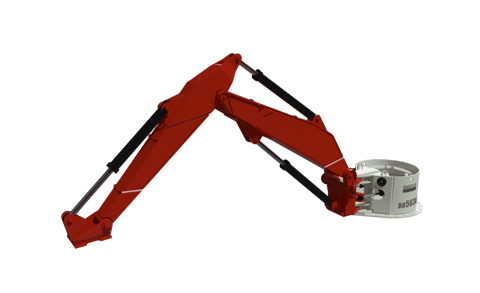

BB5630 Breaker boom
- Weight
- 7,130.0 kg (15,719.0 lb)
- Nominal horizontal reach
- 6.7 m (22.0 ft)
- Swing
- 170 °
Sandvik BB5630 breaker boom is typically used in quarries and mines to improve the productivity of stationary crushers by feeding material into the crusher and by raking the hopper area.
Features
-
Robust design
for best usability and increased service life
-
Round pedestal
for optimal stress distribution and minimal footprint
-
170° swing
for optimal reach
-
Heat-treated conical Expander® pins
offer a long service life
Product data
- Weight
- 7,130.0 kg (15,719.0 lb)
- Input power
- 37 kW (50 hp)
- Maximum reach
- 8.900 m (29.100 ft)
- Nominal horizontal reach
- 6.7 m (22.0 ft)
- Nominal vertical reach
- 5.8 m (19.0 ft)
- Swing
- 170 °
- Base diameter
- 1.68 m (5.50 ft)
- Base dimensions
Recommended breaker types BR2155i; BR2166i; BR2577i
Recommended power packs HU37; HU45
Additional product information
-
BB5630
The BB5630 is designed to withstand tough duty cycles in demanding applications like underground grizzlies. Robust triangular boom design combines light weight with high capacity. The circular shape of the pedestal optimizes the stess distribution and foundation structures.
Durable and productive Sandvik BB5630 breaker boom provides a 8.9-meter maximum reach and 170-degree swing for optimal flexibility. -
Additional advantages
- Shock-absorbing pedestal mounting extends the foundation lifetime
- Sandvik full electrification makes the boom energy efficient
-
Applications
- Primary crushers
- Grizzlies
