Medium range breaker booms

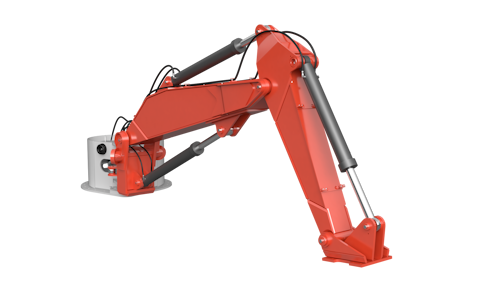

BB5440 Breaker boom

Weight: 6,300.0 kg (13,889.0 lb)
Nominal horizontal reach: 4.8 m (15.7 ft)
Swing: 170 °

Sandvik BB5440 breaker boom is typically used in quarries and mines to improve the productivity of stationary crushers by feeding material into the crusher and by raking the hopper area.

Features

Robust design

for best usability and increased service life
Round pedestal

for optimal stress distribution and minimal footprint
170° swing

for optimal reach
Heat-treated conical Expander® pins

offer a long service life

Weight: 6,300.0 kg (13,889.0 lb)
Input power: 45 kW (61 hp)
Maximum reach: 7.200 m (23.600 ft)
Nominal horizontal reach: 4.8 m (15.7 ft)
Nominal vertical reach: 3.4 m (11.1 ft)
Swing: 170 °
Base diameter: 1.68 m (5.50 ft)

Recommended breaker types BR2155i; BR2166i; BR2577i
Recommended power packs HU37; HU45

Additional product information

BB5440

The BB5440 is designed to withstand tough duty cycles in demanding applications like underground grizzlies. Robust triangular boom design combines lightweight with a high capacity. The circular shape of the pedestal optimizes the stress distribution and foundation structures.
Durable and productive BB5440 breaker boom provides a 7.2-meter maximum reach and 170-degree swing for optimal flexibility.
Additional advantages
- Shock-absorbing pedestal mounting extends the foundation lifetime
- Sandvik full electrification makes the boom energy efficient
Applications
- Primary crushers
- Grizzlies
