Large range breaker booms

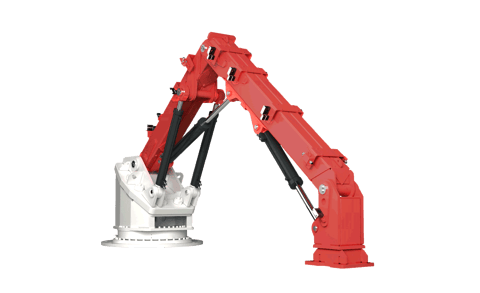

BB9700R Breaker boom

Weight
9,700 kg (25,989 )
Nominal horizontal reach
6.5 m (21.3 )
Swing
360 °

Sandvik BB9600R breaker boom is specially designed for extreme duty grizzly applications.

Features

Product data

Weight
9,700 kg (25,989 )
Input power
55.000 kW (74.000 hp)
Maximum reach
8.7 m (28.5 )
Nominal horizontal reach
6.5 m (21.3 )
Nominal vertical reach
4.3 m (14.1 )
Swing
360 °
Base diameter
1.8 m (5.9 ft)

Recommended breaker types BR2577i; BR3288i; BR4099i
Recommended power packs HU30; HU37; HU45; HU55

Additional product information

  • BB9700R

    The flexibase of the BB9700R reduces vibration in the rotating base and foundation. Boom swing with slew ring enables wider coverage and easier service access as well as constant swing torque.
    Durable and productive Sandvik BB9700R provides a 8.7-meter maximum reach with a full 360-degree swing for optimum flexibility.

  • Additional advantages

    • Heat-treated multi alloy pins for reduced wear and tear
    • Sandvik full electrification makes the boom energy efficient
  • Applications

    • Grizzlies

Our large range breaker booms

Large range breaker booms

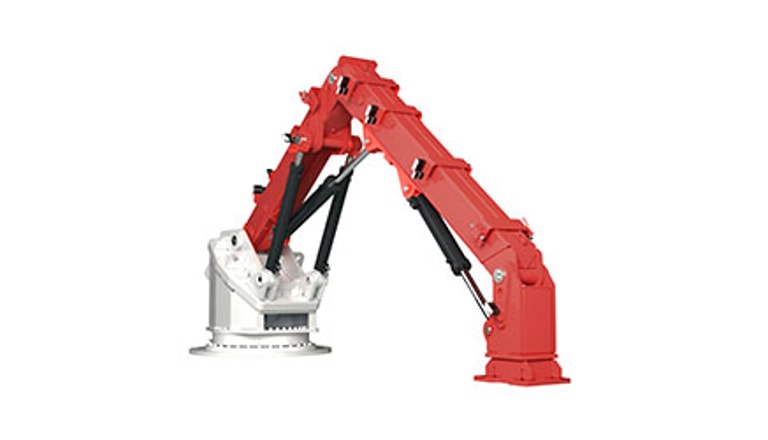

BB9600R Breaker boom
