Large range breaker booms

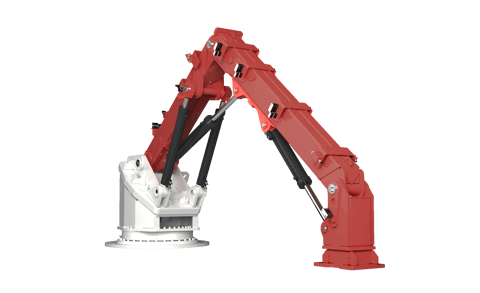

BB9600R Breaker boom
- Weight
- 9,350 kg (25,050 )
- Nominal horizontal reach
- 5.4 m (17.7 )
- Swing
- 360 °
Sandvik BB9600R breaker boom is specially designed for extreme duty grizzly applications.
Features
-
Modular design
allows easy replacement of parts and simple assembly
-
Heavy-duty cylinders
for a longer part lifetime and maximized productivity for more prolonged periods
-
360°swing
for wider coverage and service access
-
Flexibase
for reduced vibration in foundation and rotating base
Product data
- Weight
- 9,350 kg (25,050 )
- Input power
- 55.000 kW (74.000 hp)
- Maximum reach
- 7.0 m (22.9 )
- Nominal horizontal reach
- 5.4 m (17.7 )
- Nominal vertical reach
- 3.7 m (12.1 )
- Swing
- 360 °
- Base diameter
- 1.8 m (5.9 ft)
Recommended breaker types BR2577i; BR3288i; BR4099i
Recommended power packs HU30; HU37; HU45; HU55
Additional product information
-
BB9600R
The Flexibase of the BB9600R reduces vibration in the rotating base and foundation. Boom swing with slew ring enables wider coverage and easier service access as well as constant swing torque.
Durable and productive Sandvik BB9600R provides a 7-meter maximum reach with a full 360-degree swing for optimum flexibility. -
Additional advantages
- Heat-treated multi alloy pins for reduced wear and tear
- Sandvik full electrification makes the boom energy efficient
-
Applications
- Grizzlies

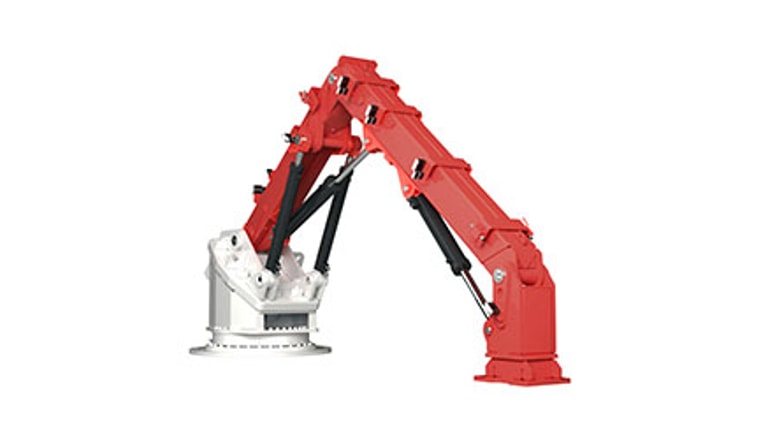

Our large range breaker booms
